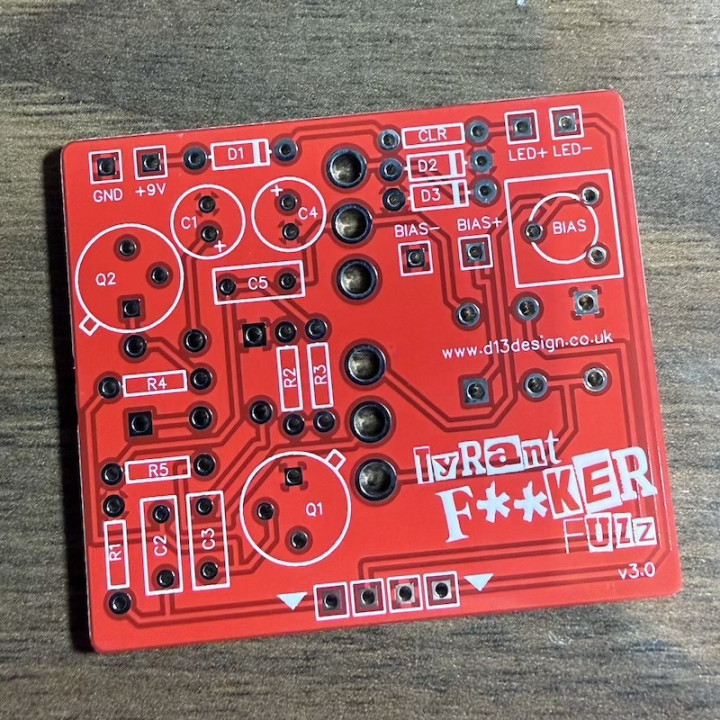

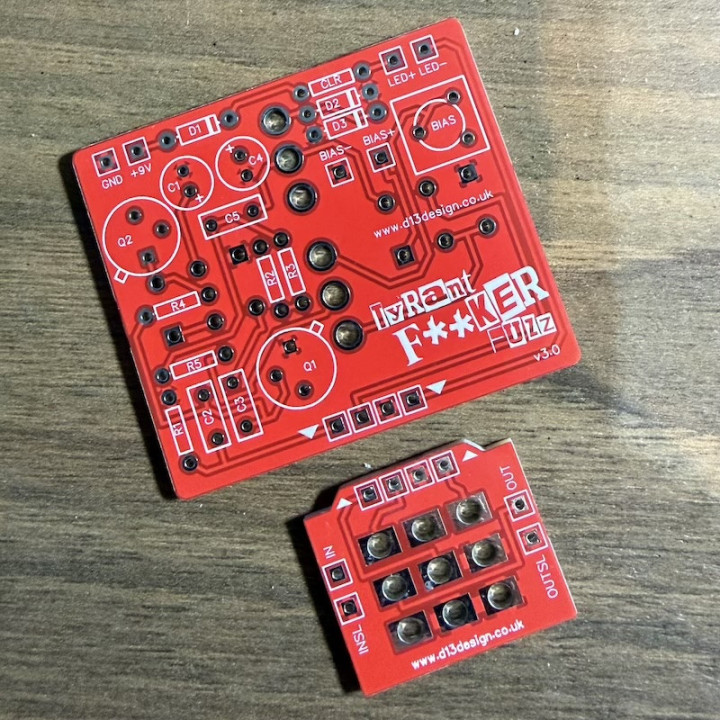

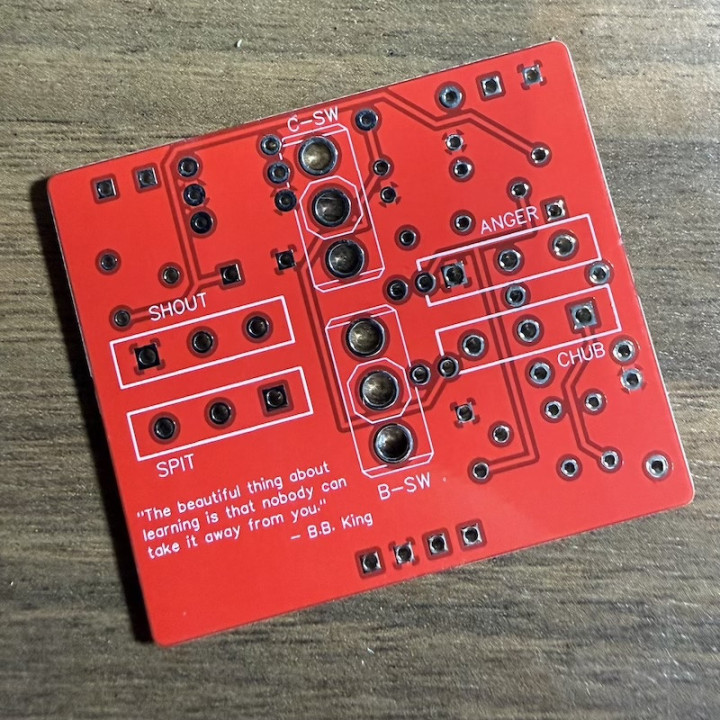

Tyrant F**ker Fuzz B-STOCK

This product is the unpopulated PCB only - full assembly, soldering, and fitting in an enclosure will be required.

This rough and tough silicon fuzz uses easy-to-find parts and is super customisable, accepting a range of transistors and clipping diodes. At its heart is the Silicon Fuzz Face, using a standard +9v power supply and controls for volume and fuzz. This one has some extras though:

• On-board bias trimpot - set this to +4.5v when everything's maxed out or find your own sweet spot
• On-board pads for easily testing the bias voltage
• Easy connectors for the LED indicator and onboard pull down resistor

And now the fun bits:

• A separate knob for bias and a switch to engage it - switch between the onboard default and the knob controlled bias to sweep from sweet drive to spitting anger
• Engage extra clipping diodes with another toggle switch to add some custom tone shaping - add more harshness or smooth things out - it's up to you

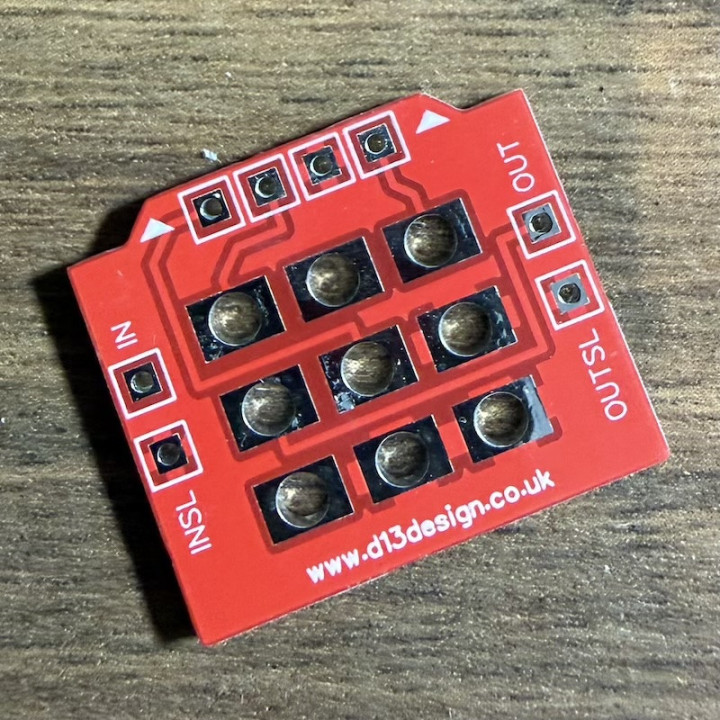

• As these are B-STOCK, there is no accompanying 3PDT daughter-board - refer to the build guide for switch wiring

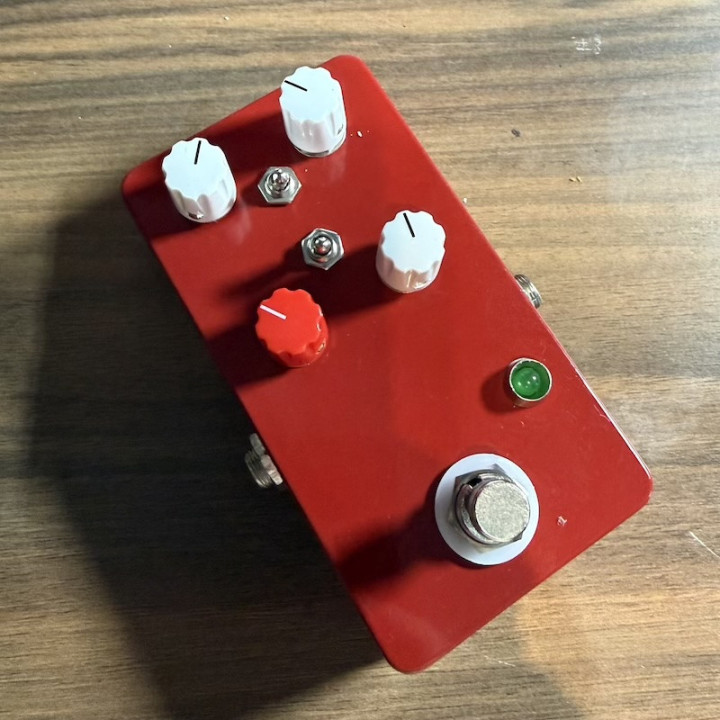

Designed to fit neatly in a 1590B enclosure and with parts that are easy to pick up.

B-STOCK - Some of the components are just a bit too close to the potentiometer pads, which makes soldering fiddly without creating unwanted shorts. If you're happy with fiddly, then grab a bargain!

50% of all profits from this PCB go to LGBTQ+ charities to help give voices to those that need lifting.

Supplied with full build guide.
